GPS repeater kit for L1 signals

A GPS repeater brings the outdoor signal inside your building
This repeater kit comes with all you need for a successful installation.
Each kit contains:
  • 40dB gain GPS L1 receiving antenna

  • Flexible antenna mount system
  • Coaxial cable; 10M, 20M or 30M
  • Variable-gain repeater unit
  • AC/DC power adapter

Longer feeder cable is possible with in-line amplifier or GPS-over-fibre link


  • GPS repeater technical data

    The L1 repeater unit has been retired, effective May 2019.

    This kit includes an L1 / GLONASS / Galileo / Beidou repeater unit with a GPS L1 antenna.

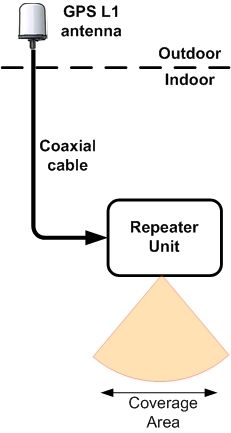

    The repeater unit has an effective coverage area of 35 – 40 meters diameter, when mounted at a height of 10 meters.

    The repeater has a built-in antenna that radiates signal in a hemispherical-shaped pattern with a 180 degree angle of view.

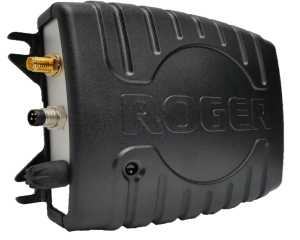

    Using the four moulded lugs, it can be mounted horizontally, for example on a ceiling, or vertically on a wall.

    All that is required is good line-of-sight between the repeater unit and the receiving devices.

    The external antenna cable connects to an SMA socket.

    The repeater sends 5V DC through the coaxial cable to power the low noise amplifier (LNA) in the antenna.

    If a larger area of coverage is required, additional repeaters can be added.

    A single outdoor antenna can supply a signal to a number of repeaters by use of a GPS signal splitter and line amplifier.

    More details on the custom-designed system page.


    Technical Details

    GPS repeater for L1, GLONASS and Galileo signals

    • Frequency:
      GPS L1             1.575 GHz
      Galileo E1         1.575GHz
      GLONASS G1  1.602 GHz
      Beidou B1         1.5611 GHz
    • Size: 110 x 143 x 28mm
    • Weight: 165g
    • Overall signal gain: >40dB
    • Noise Figure: < 2dB
    • Variable attenuation: 0-40dB
    • Antenna connector impedance: 50 Ohms
    • Input connector: SMA-socket
    • Operating temperature: -25 to +40°C
    • Power supply (included): 12VDC @ 1.6A max
    • Indoor range: up to 50m, adjustable by gain control
    • Antenna connector power output: +5VDC, 100mA
    • TX antenna gain max: +4dBd, RHCP polarization
    • Ingress protection: IP51
  • GPS antenna

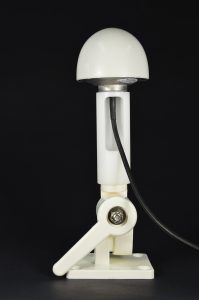

    Trimble Bullet GPS antenna on a universal mount with cable guide

    The antenna supplied with the L1 repeater kit is the Tallysman TW3042.

    The TW3042 is an active antenna with an internal low-noise amplifier (LNA) that inserts 35dB signal gain.

    The LNA boosts the received signal before it travels down the coaxial cable to the repeater input.

    A 5V DC power source for the LNA is provided by the repeater through the coaxial cable.

    The supplied universal mount and cable guide allows the antenna to be mounted on a vertical, horizontal or sloping surface.

    See the repeater installation guide for full details.

  • Order Codes

    FGPS-RP-L1-10 – repeater kit for GPS L1 signals, 10m cable

    FGPS-RP-L1-20 – repeater kit for GPS L1 signals, 20m cable

    FGPS-RP-L1-30 – repeater kit for GPS L1 signals, 30m cable

    Extend cable length by upgrading cable specification and/or using an in-line amplifier


    FGPS-RP-L1-xx, where

    FGPS = FalTech GPS
    RP = repeater package
    L1 = supported GPS signals
    XX = cable length

    GNSS/GPS signals explained

  • Coaxial Cable

    The cable supplied with a repeater kit is RF240 low-loss coaxial, with an overall outer diameter of 6mm.

    It is pre-cut and terminated with a TNC connector to attach to the antenna and an SMA connector to connect to the repeater.

    It is offered in lengths of 10m, 20m and 30m, which means that most “standard” requirements are covered.

    RF240 can extend to approximately 40m without any detrimental effect on signal strength or quality.

    For longer distances the cable can be upgrade to RF400, which is similar in construction to RF240 with an overall outer diameter of 10mm.

    Extend distances further by using GNSS amplifiers and GPS over fibre where necessary.
