GPS repeater kit for L1/L2/GLONASS/Galileo

GPS L1 & Galileo E1 (1575.42MHz)

GPS L2 (1227.60MHz)

GLONASS G1 (1602MHz)

BeiDou B1 (1561.1 MHz

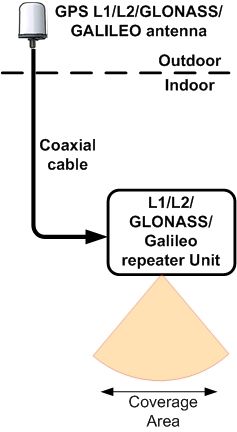

l1l2g1ga_gps_repeater_kit_schematic

Each kit contains:

  • 35dB gain active L1/L2/GLONASS/Galileo antenna

  • Flexible antenna mount system
  • Coaxial feeder cable; 10M, 20M or 30M
  • Combined L1/L2/GLONASS/Galileo repeater unit; IP67 enclosure
  • Standard (non-IP67) AC/DC power supply
  • Optional waterproof (IP67) AC/DC power supply

  • GPS repeater for L1/L2/GLONASS/Galileo

    This repeater unit has an effective coverage area of approximately 35 – 40 meters diameter when mounted at a height of 10 meters.

    The unit has a built-in re-radiating antenna that radiates signal in a hemispherical-shaped pattern with a beam width of 180 degrees.

    Using the four screw holes, two each side, it can be mounted horizontally, for example on a ceiling, or vertically on a wall.

    It should be placed  in a location where there is good line-of-sight between the repeater unit and the receiving devices.

    The external antenna cable connects to a TNC socket.

    The repeater sends 5V DC through the coaxial cable to power the low noise amplifier (LNA) in the outdoor antenna.

    If a larger area of coverage is required, additional repeaters can be added – all using a single outdoor antenna – by use of a GPS signal splitter and/or a line amplifier.

    Technical DetailsRoger GPS : GNSS-L1L2G1GA repeater for GPS L1, L2, GLONASS, Galileo; IP67 enclosure

    • Frequency:
      GPS L1 & Galileo 1.57GHz
      GPS L2 1.227GHz
      GLONASS 1.602GHz
      BeiDou 1.5611 GHz
    • Size: 244 x 165 x 64mm
    • Weight: 610g
    • Enclosure: IP67
    • Overall signal gain: >40dB
    • Variable attenuation: 0-40dB
    • Antenna connector impedance: 50 ohms
    • Input connector: TNC-socket
    • Operating temperature: -40 to +80°C
    • Power supply: 12VDC 1.6A (Standard non-IP67 power supply included)
    • Indoor coverage radius: 35-40m, adjustable by gain control
    • Antenna connector power output: +5VDC, 100mA
    • TX antenna gain max: +4dBd, RHCP polarization

    For environments where moisture and/or dust ingress is an issue, this IP67 repeater is ideal.

    However, it can also be installed in a dry environment, in which case the repeater is supplied with a standard (non-IP67) AC/DC power adapter.

    If it is installed in a damp environment, an optional waterproof (IP67) power adapter is available.

  • GPS antenna

    The antenna supplied with the L1, L2, GLONASS, Galileo repeater kit is the Tallysman TW3872.

    • The TW3872 is an active antenna with an internal low-noise amplifier (LNA) that inserts 35dB signal gain.

      The LNA boosts the received signal before it travels down the coaxial cable to the repeater input.

      A 5V DC power source for the LNA is provided by the repeater through the coaxial cable.

      The supplied universal mount and cable guide allows the antenna to be mounted on a vertical, horizontal or sloping surface.

      See the repeater installation guide for full details.

    • Coaxial cable used in GPS repeater kits

      The cable supplied with a repeater kit is RF240 low-loss coaxial, with an overall outer diameter of 6mm.

      It is pre-cut and terminated with a TNC connector to attach to the antenna and an SMA connector to connect to the repeater.

      It is offered in lengths of 10m, 20m and 30m, which means that most “standard” requirements are covered.

      RF240 can extend to approximately 40m without any detrimental effect on signal strength or quality.

      For longer distances the cable can be upgrade to RF400, which is similar in construction to RF240 with an overall outer diameter of 10mm.

      Extend distances further by using GNSS amplifiers and GPS over fibre where necessary.

  • GPS repeater kit order codes

    FGPS-RP-L1L2G1GA-10 – repeater kit for GPS L1, L2, GLONASS, Galileo signals; IP67 repeater unit; standard, non-waterproof power supply; 10m cable

    FGPS-RP-L1L2G1GA-20 – repeater kit for GPS L1, L2, GLONASS, Galileo signals; IP67 repeater unit; standard, non-waterproof power supply; 20m cable

    FGPS-RP-L1L2G1GA-30 – repeater kit for GPS L1, L2, GLONASS, Galileo signals; IP67 repeater unit; standard, non-waterproof power supply; 30m cable


    FGPS-RP-L1L2G1GA-10 (IP67) – repeater kit for GPS L1, L2, GLONASS, Galileo signals; IP67 repeater unit; IP67 power supply; 10m cable

    FGPS-RP-L1L2G1GA-20 (IP67) – repeater kit for GPS L1, L2, GLONASS, Galileo signals; IP67 repeater unit; IP67 power supply; 20m cable

    FGPS-RP-L1L2G1GA-30 (IP67) – repeater kit for GPS L1, L2, GLONASS, Galileo signals; IP67 repeater unit; IP67 power supply; 30m cable

    Power supply options explained

    Extend cable length by upgrading cable specification and/or using an in-line amplifier


    FGPS-RP-L1L2G1GA-xx, where

    FGPS = FalTech GPS
    RP = repeater package
    GPS L1 & L2, GLONASS, Galileo = supported signals
    XX = cable length
