GPS amplifier & splitter

This unit is a combined GPS amplifier/splitter; it has a built-in line amplifier with a gain of 16dB that can transmit a GPS signal to up to three separate GPS repeater/receiver units.

This versatile device can be used in three main configurations:

  • As a GPS splitter unit (1:3) with the amplifier not used
  • As a GPS splitter unit (1:3) with the amplifier in circuit
  • As a line amplifier only with the splitter element un-used

Standard non-waterproof (IP51) GPS amplifier/splitter unit

GPS amplifier section

Roger-GPS | amplifier/splitter | standard IP51 enclosure
  • Size: 110 x 143 x 28mm
  • Weight: 195g
  • Operating temperature: -35 to +85°C
  • Connectors: 2 x TNC socket
  • Frequency range: 1200 to 1700 MHz
  • Noise figure: <5.0dB
  • Impedance: 50O
  • Gain: +16dB

GPS splitter section

  • Connectors: 1 x TNC socket input; 3 x TNC socket output
  • One output -4dB with DC input from repeater unit
  • Two outputs -12dB, DC blocked, to connect to repeater units
  • Power supply: via output/DC input port from the repeater unit
  • Frequency range: 1200-1700MHz

Waterproof (IP67) GPS amplifier/splitter unit

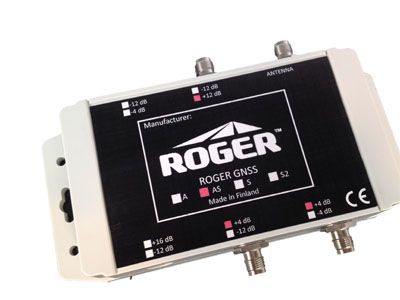

Roger GPS amplifier/splitter unit (IP67 waterproof)

For environments where dust and/or moisture ingress is an issue.

The IP67 amp/splitter specification is identical to the standard unit shown above; the only physical differences are as follows:

  • Size: 200 x 119 x 39mm
  • Weight: 243g
  • Enclosure: IP67

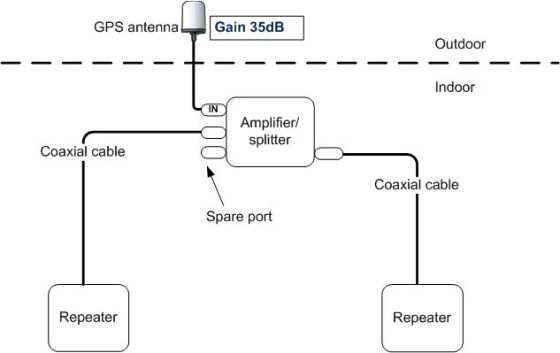

Schematic diagram showing GPS amplifier/splitter supporting two GPS repeaters with one GPS antenna

Other components in the range can be combined with the amplifier/splitter to create a custom-designed system.
