GPS repeater for L1/GLONASS/Galileo

This repeater has an effective coverage area of  35 – 40 meters radius from the centre when mounted at a height of 10 meters.

The GPS repeater unit has a built-in antenna that radiates signal in a hemispherical-shaped pattern within a ~180 degree angle of view.

Using the four moulded lugs, it can be mounted horizontally, for example on a ceiling, or vertically on a wall.

All that is required is good line-of-sight between the repeater unit and the receiving devices.

The external antenna feeder cable connects to an SMA socket; the repeater sends 5V DC through the coaxial cable to power the low noise amplifier (LNA) in the antenna.

If a larger area of coverage is required, additional repeaters can be added – all using a single outdoor antenna – by use of a GPS signal splitter and/or a line amplifier.

GNSS-L1G1GA: GPS L1/GLONASS/Galileo/BeiDou repeater

ROGER-GPS | GNSS-L1G1GA | GPS repeater unit for L1, GLONASS, Galileo, Beidou
  • Frequencies:
    GPS L1 1.575 GHz
    Galileo E1 1.575 GHz
    GLONASS G1 1.575 GHz
    BeiDou B1 1.5611 GHz
  • Size: 110 x 143 x 28mm
  • Enclosure: IP51

  • Weight: 165g
  • Overall signal gain: >40dB
  • Noise Figure: < 2dB
  • Variable attenuation: 0-40dB
  • Antenna connector impedance: 50O
  • Input connector: SMA-socket
  • Operating temperature: -25 to +40°C
  • Power supply: 12VDC 300mA (Power supply included)
  • Indoor range: up to 50m, adjustable by gain control
  • Antenna connector power output: +5VDC, 100mA
  • TX antenna gain max: +4dBd, RHCP polarization

Differences between GNSS & GPS explained here

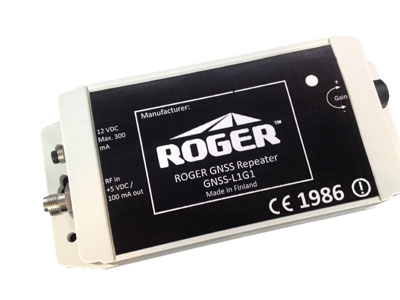

GNSS-L1G1GA-IP67: Waterproof GPS L1/GLONASS/Galileo/BeiDou repeater

For environments where moisture and/or dust ingress is a problem, this IP67 version of the L1/GLONASS/Galileo/BeiDou repeater is ideal.

The repeater specification is exactly the same as the standard unit shown above, the only differences are as follows:

ROGER-GPS | GNSS-L1G1GA | GPS repeater unit for L1, GLONASS, Galileo, Beidou
  • Size: 200 x 89 x39mm
  • Weight: 274g
  • Enclosure: IP67
  • Input connector: TNC-socket

Supplied with standard (non-waterproof) AC/DC power supply if used in dry conditions.

An IP67 waterproof PSU is available as an option for use in high moisture conditions.

Power supply options

For details of L1/GLONASS/Galileo repeater kits click here.
