GPS over fibre splitter with up to 32 coaxial connections

GPS over fibre splitter supplies signal to 8-32 coaxial connections.

Perfect for a data centre fan-out environment where up to 16 devices can share a single GPS antenna.

Local Integrated GPS Splitter

GPS over fibre 32 port splitter
  • Point to multi-point
  • Multiple configuration options
  • 1 x 8, 2 x 8, 4 x 8, 1 x 16, 2 x 16
  • Up to 4 GPS optical receivers
  • Optional built-in SNMP card
  • Splitting function is lossless
  • Dual redundant PSU
  • 5 year warranty

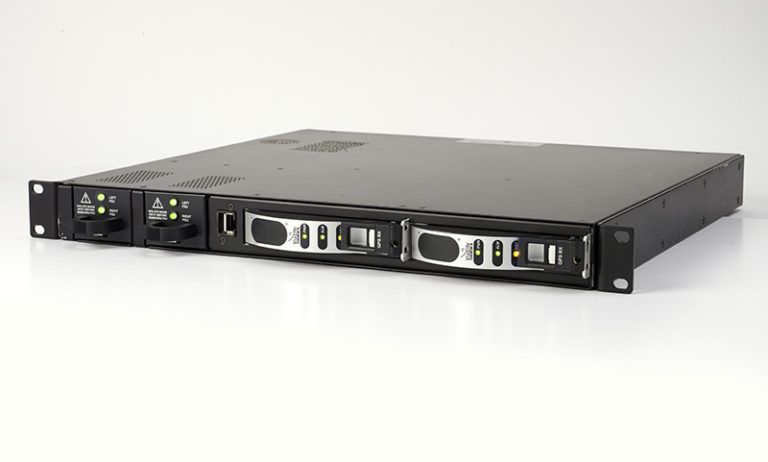

The ViaLiteHD GPS splitter is designed to minimize rack space, taking up just 1RU of height.

The chassis is available with 1-4 RF over fibre receivers with 8-32 outputs depending on configuration.

All 8-32 channels can be lossless when paired with the appropriate optical RX receiver unit.

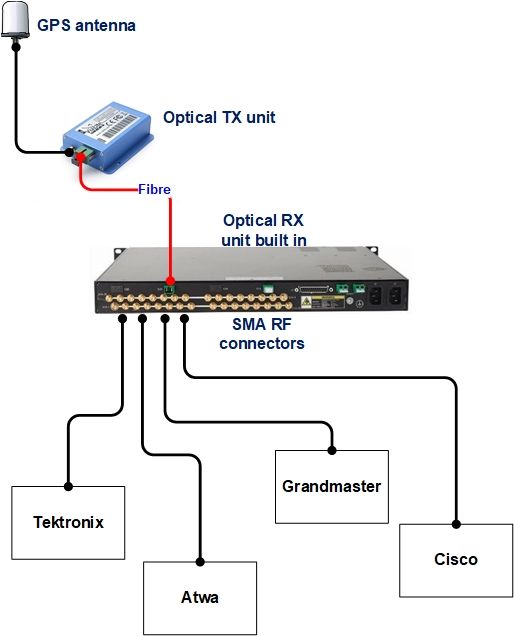

Example configuration

The internal RX unit inserts signal gain to ensure lossless transmission to attached devices.

  • 1 x GPS over fibre optical TX unit
  • 1 x Local Integrated splitter chassis
  • 1 x built-in optical RX unit
  • 1 x internal 8-way splitter
  • 8 x coaxial outputs

Groups of 8, 16 or 32 ports can be allocated to different clients in a data centre environment.

Or all 32 can be made available in one space and shared between one client/application group.

Internal splitters have either 8 or 16 ports, mapped to the rear-mounted RF connectors.

For a 32-port splitter, at least two optical inputs will be required.

Applications

  • 1 x GPS over fibre optical TX unit
  • 1 x Local Integrated splitter chassis
  • 1 x built-in optical RX unit
  • 1 x internal 8-way splitter
  • 8 x coaxial outputs
Configuration Options
GPS RF splitter outputs 8 | 16 | 32
Optical RX units 1 – 4 optical receivers; single port and dual port
Optical connections Blind mate; hot swappable
Built-in SNMP Internal HRC-3 SNMP module
Built-in amplifier Up to 25dB gain
Mains power 240 VAC; Dual redundant PSU
DC power +48 VDC input

This very flexible RF splitter can be configured in many different ways.

For assistance with your application, do get in touch and let us help create the most appropriate system for you.


GPS over fibre systems

Available as a complete solution, including

  • antenna with mount
  • coaxial cables
  • fibre optic cable
  • optical units

Or the optical units can be supplied separately.

Contact FalTech to discuss your requirements  – details below.
